Oil Drilling Tubing Pipe Wall Thickness 2.87-22.22mm Length R1 R2 R3 OEM Service

Name: Oil Drilling Tubing Pipe Wall Thickness 2872222mm Length R1 R2 R3 OEM Service
Brand: Zhongshi
Price: 1 USD

Brand Name : Zhongshi

Model Number : 1.05"-4 1/2"

Certification : API 5CT, ISO, QHSE

Place of Origin : China

MOQ : 1 metric ton

Price : Negotiable

Payment Terms : T/T, L/C

Packaging Details : Be bundled by steel strap

Standard : API 5CT

Material : Alloy steel

Steel grade : J55, K55, L80, N80, P110, P110-13Cr

Application : Oil drilling

Section of shape : Round

Technique : Hot rolled

Contact Now

2 3/8" - 4 1/2" Quality Oilfield Tubing Pipe PE NUE EUE for oil production

Description of oil tubing:

Tubing is a pipe used for the transportation of crude oil and natural gas from oil or gas layer to the

surface after drilling is completed. It is made to withstand the pressure generated from the extraction

process.

Tubing is manufactured in the same way as casing, except that an additional process known as

"upsetting" is applied to thicken the pipes.

Features:

1. Seamless oil pipe
2. Hot-rolling pipe
3. Size OD: 1.05”-4 1/2”

Technical specification:

API 5CT standard casing and tubing
Steel grade	J55,K55,N80, N80Q, L80, P110
Processing method:	Hot rolled
Outside Diameter:	26.67-508mm
Wall thickness:	2.87-22.22mm
Length:	R1, R2, R3
Standard:	API 5CT
Specification:	O.D: 1.05" - 20" (inch)
	WT: 4.6PPF,4.7PPF,5.8PPF,5.95PPF,6.4PPF,6.5PPF,7.8PPF,7.9PPF,etc.

Mechanical properties:

Standard	Steel grade	Tensil Strength(Mpa)	Yeild Strength(Mpa)	Elongation(%)
API 5CT	J55	≥517	379~552	0.5%
API 5CT	K55	≥655	379~552	0.5%
API 5CT	N80	≥689	552~758	0.5%
API 5CT	L80	≥655	552~655	0.5%
API 5CT	P110	≥862	758~965	0.6%

Oil Drilling Tubing Pipe Wall Thickness 2.87-22.22mm Length R1 R2 R3 OEM Service

Product Tags:

steel well casing pipe

oil well tubing

Wholesale Oil Drilling Tubing Pipe Wall Thickness 2.87-22.22mm Length R1 R2 R3 OEM Service from china suppliers

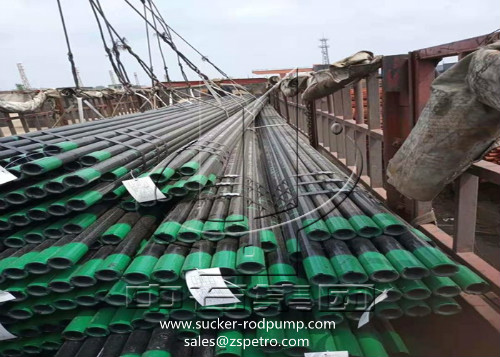

Oil Drilling Tubing Pipe Wall Thickness 2.87-22.22mm Length R1 R2 R3 OEM Service Images
