Puyang Zhongshi Manufactured TH(B)M Tubing, Heavy Wall Barrel ,Mechanical Anchor Pump

Name: Puyang Zhongshi Manufactured THBM Tubing Heavy Wall Barrel Mechanical Anchor Pump
Brand: Zhongshi
Price: 1 USD

Wholesale Puyang Zhongshi Manufactured TH(B)M Tubing, Heavy Wall Barrel ,Mechanical Anchor Pump from china suppliers

Brand Name : Zhongshi

Model Number : TH(B)M

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 SETS/MONTH

Delivery Time : Depends on quantity

Packaging Details : Standard exported packing

Name : TH(B)M Tubing Pump

Application : Petroleum production

Color : Required

Certificate : API 11 ax

Material : Chromium Molybdenum Alloy Steel

Contact Now

Puyang Zhongshi Manufactured TH(B)M Tubing, Heavy Wall Barrel ,Mechanical Anchor Pump

Product description

Tubing Pump is also called pipe type pump,the feature is that assemble the outer cylinder liner,the bush and the suction valve well on the ground,and connect at the bottom of the oil,into the wells,then use the sucker rod pump through tubing to put the piston is provided with a discharge valve into the pump.

Technical Specifications

	Major technical Specification
Type	Diameter(mm)	Barrel Length (m)	Stroke Range (m)	Length of Extension Pub Joint(m)	Thread for Tubing(in)
Rod pumps	31.8	2.1 2.4 2.7 3.0 3.3 3.6 3.9 4.2 4.5 4.8 5.7 6.0 6.6 7.3 9.1	1.5-6	0.3 0.6 0.9	2 3/8
	38.1				2 7/8
	44.45				2 7/8
Tubing pump	31.8		1.5-7.8	0.3 0.6 0.9	2 3/8
	38.1				2 7/8
	44.45				2 7/8
	57.15				2 7/8
	69.85				2 7/8 3 1/2
	82.55				3 1/2
	95.25				3 1/2

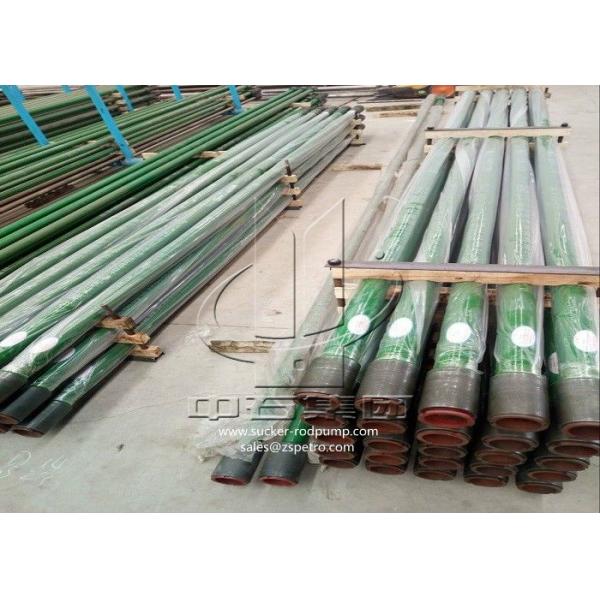

Pictures

Puyang Zhongshi Manufactured TH(B)M Tubing, Heavy Wall Barrel ,Mechanical Anchor Pump

Puyang Zhongshi Manufactured TH(B)M Tubing, Heavy Wall Barrel ,Mechanical Anchor Pump
